The tact switch is also called a push button switch. When used to meet the operating force, the pressure switch function is closed and connected to the switch operation direction. When the pressure is withdrawn, the switch will be disconnected. Its internal structure is realized by the force change of metal elastic fragments.

The tact switch consists of: insert, base, shrapnel, button, cover plate. The waterproof tact switch adds a layer of polyimide film on the shrapnel. The tact switch has small contact resistance and accurate operation error. Advantages in terms of diversification of specifications.

Dust-proof Tactile Switches RTR-85/12

• Rating：12VDC 50mA

• Contact Resistance：100mΩ Max initial

• Insulation Resistance：100mΩ 500VAC for 1min

• Dielectric Strength：250VAC(50/60Hz) for 1min

• Operating Force：300±100gf 400±100gf

• Mechanical Life：1,000,000 cycles 10,0000 cycles

• Travel：0.5±0.3mm(CTR-12) 0.8±0.2mm(CTR-8)

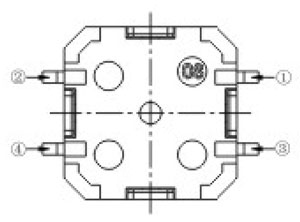

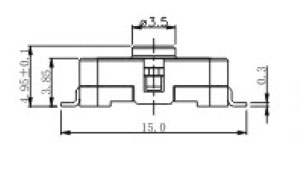

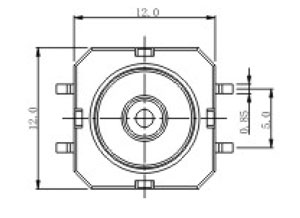

Dust-proof Tactile Switches Structure Diagram RTR-85/12

Part Number	Rating	Contact Resistance	Insulation Resistance	Dielectric Strength	Operating Force	Mechanical Life	Travel	Download
RTR-12-M-9-X-V	12VDC 50mA	100mΩ Max initial	100mΩ 500VAC for 1min	250VAC(50/60Hz) for 1min	300±100gf 400±100gf	1,000,000 cycles 10,0000 cycles	0.5±0.3mm(CTR-12) 0.8±0.2mm(CTR-8)	NULL
RTR-12-C-9-X-V	12VDC 50mA	100mΩ Max initial	100mΩ 500VAC for 1min	250VAC(50/60Hz) for 1min	300±100gf 400±100gf	1,000,000 cycles 10,0000 cycles	0.5±0.3mm(CTR-12) 0.8±0.2mm(CTR-8)	NULL
RTR-85-H-4-X-V	12VDC 50mA	100mΩ Max initial	100mΩ 500VAC for 1min	250VAC(50/60Hz) for 1min	300±100gf 400±100gf	1,000,000 cycles 10,0000 cycles	0.5±0.3mm(CTR-12) 0.8±0.2mm(CTR-8)	NULL
RTR-85-M-4-X-V	12VDC 50mA	100mΩ Max initial	100mΩ 500VAC for 1min	250VAC(50/60Hz) for 1min	300±100gf 400±100gf	1,000,000 cycles 10,0000 cycles	0.5±0.3mm(CTR-12) 0.8±0.2mm(CTR-8)	NULL
